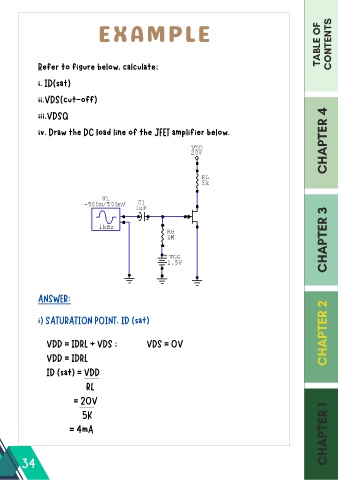

EXAMPLE TABLE OF CONTENTS
Refer to figure below, calculate;
i. ID(sat)
ii.VDS(cut-off)
CHAPTER 4
iii.VDSQ
iv. Draw the DC load line of the JFET amplifier below.
CHAPTER 3
ANSWER:
i) SATURATION POINT, ID (sat)
VDD = IDRL + VDS ; VDS = 0V CHAPTER 2
VDD = IDRL
ID (sat) = VDD
RL
= 20V
5K
= 4mA CHAPTER 1
