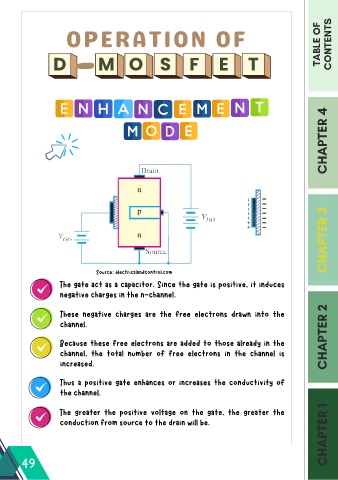

OPERATION OF
CHAPTER 4
CHAPTER 3
Source: electricalandcontrol.com
The gate act as a capacitor. Since the gate is positive, it induces
negative charges in the n-channel.
These negative charges are the free electrons drawn into the
channel.
Because these free electrons are added to those already in the CHAPTER 2
channel, the total number of free electrons in the channel is
increased.
Thus a positive gate enhances or increases the conductivity of
the channel.
The greater the positive voltage on the gate, the greater the
conduction from source to the drain will be. CHAPTER 1
