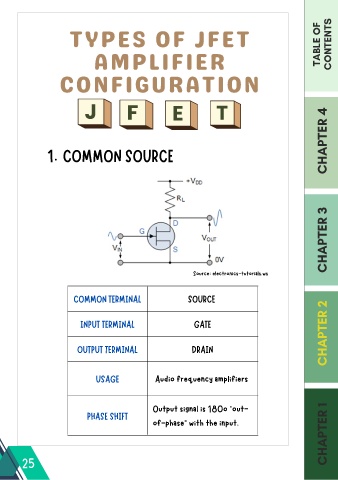

TYPES OF JFET TABLE OF CONTENTS
AMPLIFIER
CONFIGURATION
CHAPTER 4
1. COMMON SOURCE
CHAPTER 3
Source: electronics-tutorials.ws
COMMON TERMINAL SOURCE
CHAPTER 2
INPUT TERMINAL GATE
OUTPUT TERMINAL DRAIN
USAGE Audio frequency amplifiers
Output signal is 180o "out-
PHASE SHIFT
of-phase" with the input. CHAPTER 1
