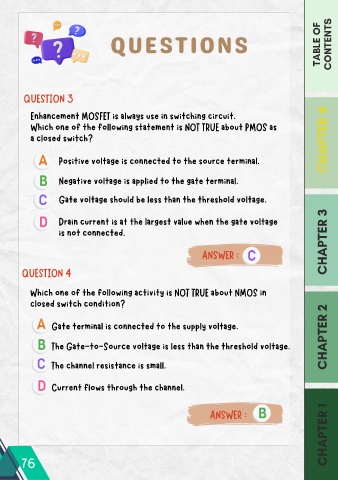

QUESTIONS
QUESTION 3
Enhancement MOSFET is always use in switching circuit.
Which one of the following statement is NOT TRUE about PMOS as
a closed switch? CHAPTER 4
Positive voltage is connected to the source terminal.
Negative voltage is applied to the gate terminal.
Gate voltage should be less than the threshold voltage.
Drain current is at the largest value when the gate voltage
is not connected. CHAPTER 3
ANSWER :
QUESTION 4
Which one of the following activity is NOT TRUE about NMOS in
closed switch condition?
Gate terminal is connected to the supply voltage.
The Gate-to-Source voltage is less than the threshold voltage. CHAPTER 2
The channel resistance is small.
Current flows through the channel.
CHAPTER 1
ANSWER :
76
