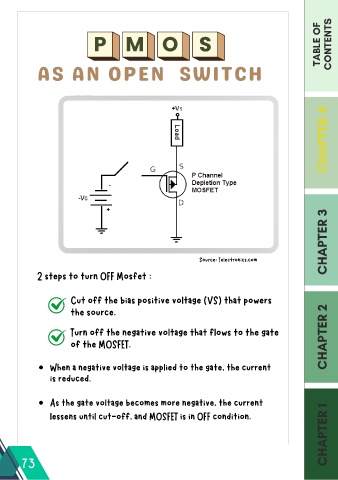

AS AN OPEN SWITCH
CHAPTER 4
CHAPTER 3
Source: Telectronics.com
2 steps to turn OFF Mosfet :
Cut off the bias positive voltage (VS) that powers
the source.
Turn off the negative voltage that flows to the gate
of the MOSFET. CHAPTER 2
When a negative voltage is applied to the gate, the current
is reduced.
As the gate voltage becomes more negative, the current
CHAPTER 1
lessens until cut-off, and MOSFET is in OFF condition.
