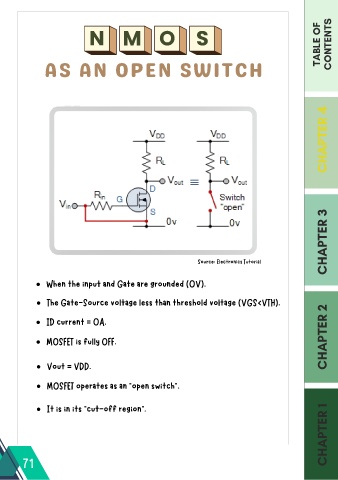

AS AN OPEN SWITCH
CHAPTER 4
CHAPTER 3
Source: Electronics Tutorial
When the input and Gate are grounded (0V).
The Gate-Source voltage less than threshold voltage (VGS<VTH).
ID current = 0A.
MOSFET is fully OFF. CHAPTER 2
Vout = VDD.
MOSFET operates as an "open switch".
It is in its "cut-off region".
