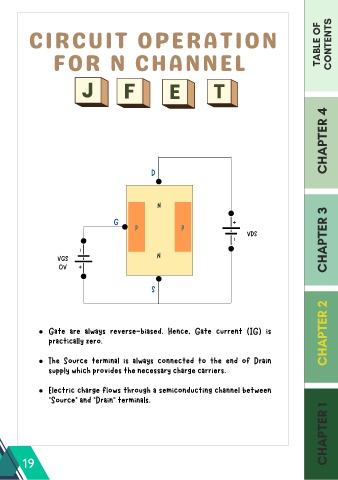

CIRCUIT OPERATION TABLE OF CONTENTS
FOR N CHANNEL
CHAPTER 4
D
N
G
P P
VDS CHAPTER 3
VGS N
0V
S
CHAPTER 2
Gate are always reverse-biased. Hence, Gate current (IG) is
practically zero.
The Source terminal is always connected to the end of Drain
supply which provides the necessary charge carriers.
Electric charge flows through a semiconducting channel between
"Source" and "Drain" terminals.
