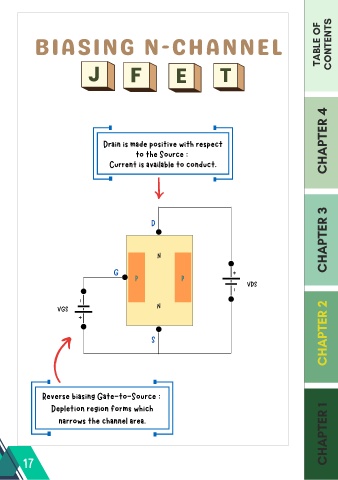

BIASING N-CHANNEL TABLE OF CONTENTS
CHAPTER 4
Drain is made positive with respect
to the Source :
Current is available to conduct.
CHAPTER 3
D
N
G
P P
VDS
CHAPTER 2
VGS N
S
Reverse biasing Gate-to-Source :
Depletion region forms which
narrows the channel area. CHAPTER 1
