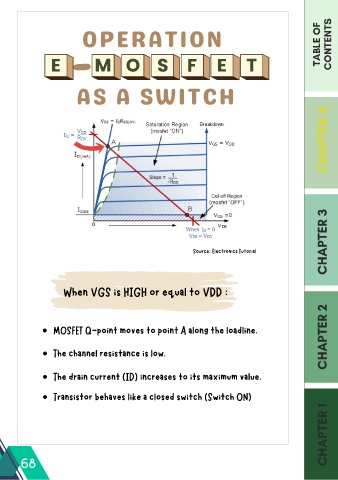

OPERATION
AS A SWITCH
CHAPTER 4
CHAPTER 3
Source: Electronics Tutorial
When VGS is HIGH or equal to VDD :
CHAPTER 2
MOSFET Q-point moves to point A along the loadline.
The channel resistance is low.
The drain current (ID) increases to its maximum value.
Transistor behaves like a closed switch (Switch ON)
