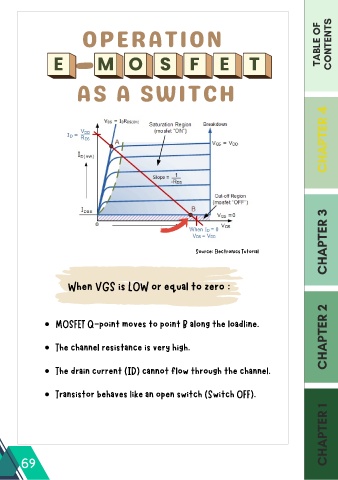

OPERATION
AS A SWITCH
CHAPTER 4
CHAPTER 3
Source: Electronics Tutorial
When VGS is LOW or equal to zero :
CHAPTER 2
MOSFET Q-point moves to point B along the loadline.
The channel resistance is very high.
The drain current (ID) cannot flow through the channel.
Transistor behaves like an open switch (Switch OFF).
