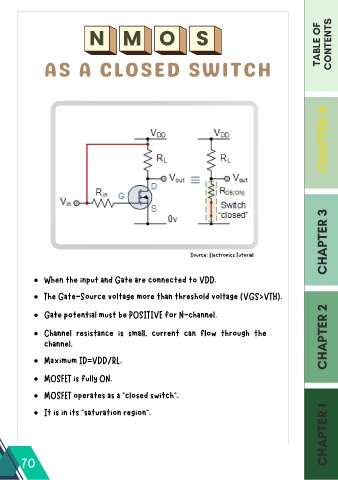

AS A CLOSED SWITCH
CHAPTER 4
CHAPTER 3
Source: Electronics Tutorial
When the input and Gate are connected to VDD.
The Gate-Source voltage more than threshold voltage (VGS>VTH).
Gate potential must be POSITIVE for N-channel.
Channel resistance is small, current can flow through the CHAPTER 2
channel.
Maximum ID=VDD/RL.
MOSFET is fully ON.
MOSFET operates as a "closed switch".
CHAPTER 1
It is in its "saturation region".
